Economy Two Post Hydraulic Auto Lift GL-3.2-2E

Economy and durable vehicle lift easy install and maintainess.

  • Item No.:

    Two Post Auto Lift
  • Payment:

    FOB
  • Product origin:

    China
  • Color:

    Bule or customize
  • Shipping port:

    Shenzhen/Guangzhou
  • Lead Time:

    15 working days
  • Product Details

Guangli Car Lift:


GL-3.2-2E Two Post Hydraulic Auto Lift features:

Hydraulic power driving to elevate;
The posts formed & molded as a whole at a time;
Applying the asymmetrical corbels to support car;
380V Chinese pump. Option: imported pump or 220V electrical motor;
more reliable & steady to ascending or descending Standard configuration;
With double insurance device of self-holding, rising by chains and balancing through steel ropes.


hot sales Enconomy lift

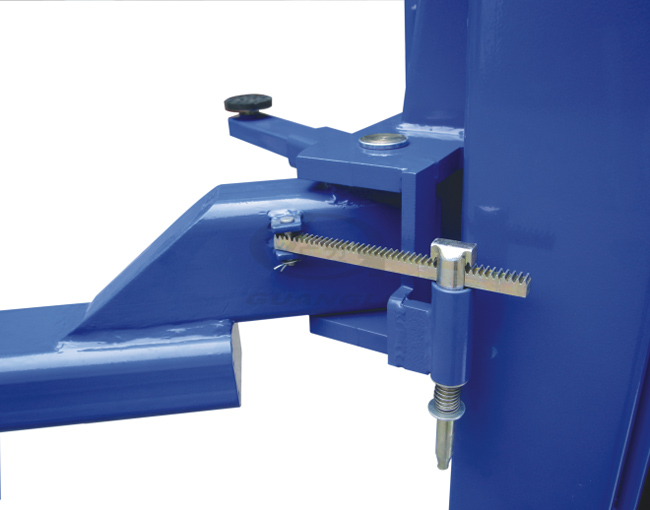

The arm is credible locking structure.



car lift arms


Enconomy lift lock

Adopt un-symmetry arm.



Technical Specifications

Max.lifting weight(Kg) 3200

Max.lifting height(mm) 1900

Voltage(V) 380

Frequency(Hz) 50

Motor power(Kw) 2.2

Remark Chinese pump


Enconomy Car Lift  Outline Drawing (unit:mm)
