Stable Four Post Auto Lift for Four-Wheel Alignment GL-3.5-4D1

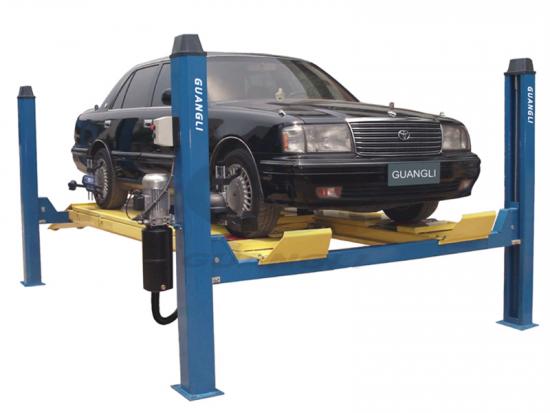

GL-3.5-4D1 Stable four post auto lift for four-wheel alignment features:

With the secondary lift; power coated, controlled by main hydraulic pump.

With lateral-sliding devices at the rear and the slots at the front; fulfilling the function of 4-wheel-alignment;

Having 3 safety protections: Broken-rope-locking device, Mechanical hooks and Hydraulic pressure locking automatically;

Collocating the imported driving power unit, reliable performance, ascending or descending steady, low noise; durable life-span;

Mechanical hooks locked by pneumatic device; Capable to normal repairing jobs The crossing boards & the posts formed & molded as a whole at a time; Good rigidity.

A secondary lifting carriage is equipped, which is applicable to adjusting and repairing the tire. This carriage adopted an separately imported hydraulic drive control unit.

Lengthened slide plates are applicable to most automobiles of various length. When testing the tyre positioning, the slide plates shall be sliding freely; and in time of normal maintenance operation, a lock pin shall be used to lock the slide plate.

Technical specifications:

Max.lifting weight(Kg) 3500

Max.lifting height(mm) 1650

The secondary Lifting(mm) 500

Voltage(V) 380

Frequency(Hz) 50

Motor power(Kw) 2.2

Remark Imported pumb for four wheel alignment

Outline Drawing for Secondary Lifting Carriage (unit :mm)

Foundation Drawing : (unit : mm )

Technique requirement::

1. Ensure the level degree of the bridge board meet the requirment.

2.The foundation must be level enough. Level error should not be larger than 5mm.

3. Ensure the clearance and the vertical degree between the post and the girder meet the requirement.

4. If the thickness of ground concrete is thicker than 150mm and the ground strength and the level reach the requirement, expanded bolting could be used to fix.

5.This foundation needs to be built in a secondary grouting. And if only grouting one time, it should be ensured the size for embeding the anchor bolts; the foundation should be strengthened by einforcing steel bars.
