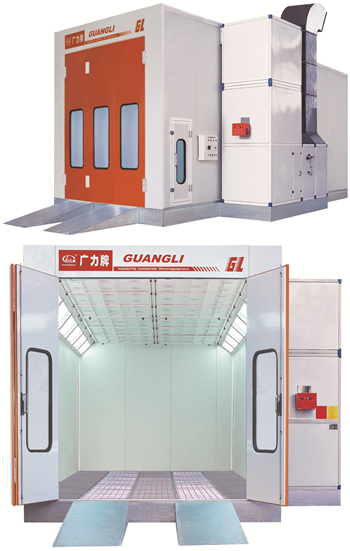

OEM Auto Midsize Bus Spray Paint Booth GL2000-B1

Description | GL2000-B1 CE Spray Booth Feature:

Bus paint booths are designed for cars and other heavy vehicles. The height, width & depth can be customized as per requirement. The spray booth is pre-centres for fast assembly. The modular booths are easy to assemble.

Main body & basement:

1. Wall panel: Sandwich style, Thickness=50mm, polystyrene, rock wool available as required.
2. Basement: Steel structure, 3 rows of vein board and 2 rows of grids, full grids as optional.
3. Door: 3 pcs of front door without aluminum side cover. 1pcs of emergency door with pressure lock.
4. Basement: Steel structure, 3 rows of vein board and 2 rows of grids, full grids as optional.
5. Ramp: 2 pcs vein board

Fans & ducts:

1. One 11kw intake fan and one 7.5kw exhaust fan.
2. 4m straight exhaust ducts, one 90° bend, and one 60° bend. 5m straight chimney and 2 small bends.
3. Damper changer of painting and drying: Changed automatically with cylinder-link driving.

Burner & filters:

1. Heat ex-changer: Stainless steel. Riello/ RG5S burner.
2. Roof filter: 5 pcs of filter, mounted above support frame, which is made of steel and powder coated.
3. 2 pcs of floor filter and 1 pcs of outlet filter.
4. Upper light: 12 sets, 4*18w per set. LED
5. Control box: Imported components, overload, overheat, phase-lacking, phase-locking protection, engine Y/△ start.
6. Automatically stop when preset time is up.
7. Constant temperature spraying.

   Model	GL2000-B1
   External size (m)	8.7x5.63x4.23
   Internal size (m)	8.6x4.0x3.4
   Entrance Width(m)	3.0
   Entrance Height(m)	3.35
   Fan capacity(m3 /h)	35000
   Air velocity (m/s)	0.25-0.3
   Air ventilation (times/h)	332
   Drying Temperature	60-80
   Water-based paint device	As option
   Oil consumption (L/unit)	6-8
   Power (kw)	20.5
   Suitable Automobile Type	Mid-size bus

Guangli have established a reliable way of packing the materials and transporting them across the country. This system ensures the booth will arrive undamaged and without excessive shipping costs.
